SNBC BTP-S80 Thermal Printer | Reference Guide

This guide provides step-by-step instructions for setting up and configuring the SNBC BTP-S80 Thermal Printer for the SkyTab Venue App. Please note that Wi-Fi is not supported on this device. The printer can be configured in several ways, including:

• 🔌 USB Connection

• 🌐 LAN (Ethernet) Connection


📡 Network Configuration Requirements

For LAN setups, you’ll need to assign a Static IP Address to your printer.

OR use DHCP Reservations provided by your network administrator.

We recommend preparing either a Static IP or a Static IP Range for your network printer(s) before setup.

If you're unsure how to obtain this information, please consult with your IT team or network provider for assistance.


🔧 Before You Begin

Ensure your SkyTab Venue POS app is updated to at least version 2.19.6, as this is the minimum version required for SNBC printer compatibility.


📦 What’s Included

This guide walks you through the complete USB setup process. For other configuration methods, such as Network setup, please refer to the attached support articles linked below.

• Cloud Receipt Printing Setup Guide
• Cloud Fulfillment Printing Setup Guide
• Assign a Static IP – SNBC BTP-S80

Packing List:

🔧 SNBC BTP-S80 Printer – Setup Options

Below are the supported configuration options for setting up your SNBC BTP-S80 Thermal Printer, depending on how and where you plan to use it.


💻 Direct USB Receipt Printing

Use this method if you'd like to connect the printer directly to a single workstation (such as an L1400 or Elo Kiosk) for receipt printing only.

📌 Example: A customer-facing receipt printer connected directly to a POS device.

➡️ Follow the steps in this guide to configure USB receipt printing:

(Steps included in this document)

☁️ Cloud USB Receipt Printing

This setup allows multiple devices to send receipt print jobs to a single printer via the cloud, while the printer remains physically connected to one L1400 workstation via USB.

📌 Example: A centralized receipt printer serving several POS devices at the same stand.

➡️ Setup guide:

Cloud Receipt Printing Setup Guide

🌐 Cloud Ethernet Receipt Printing

Connect the printer to your network using Ethernet (LAN), assign a Static IP Address, and place it anywhere in your location with LAN access. This allows multiple POS devices to route receipts to a single printer.

📌 Example: A shared receipt printer placed conveniently in a stand or service area.

➡️ Network configuration guide:

Assign a Static IP – SNBC BTP-S80

➡️ Setup guide:

Cloud Receipt Printing Setup Guide

🧾 Cloud Ethernet Fulfillment/Chit Printing

Similar to the Ethernet receipt setup, this configuration is ideal for chit printing in kitchens, bars, or other production areas. Connect the printer via Ethernet, assign a Static IP, and configure it in Canopy 2 to receive routed chits from assigned POS devices.

📌 Example: A kitchen printer receiving food or drink prep orders.

➡️ Network configuration guide:

Assign a Static IP – SNBC BTP-S80

➡️ Setup guide:

Cloud Fulfillment Printing Setup Guide

🔌 Direct USB Receipt Printing Setup (SNBC BTP-S80)

This guide walks you through connecting your SNBC BTP-S80 printer directly to a workstation (L1400 or Elo Kiosk) using the provided USB cable. This setup is ideal for printing customer receipts directly from a single POS device.

🧰 What You’ll Need:

• SNBC BTP-S80 Printer

• USB A to B cable (included)

• L1400 or Elo Kiosk workstation

🔧 Step-by-Step Setup:

1. Connect the USB Cable

   • Plug the USB B end of the cable into the back of the printer.

   • Plug the USB A end into an available USB port on your L1400 hub or Elo Kiosk hub.

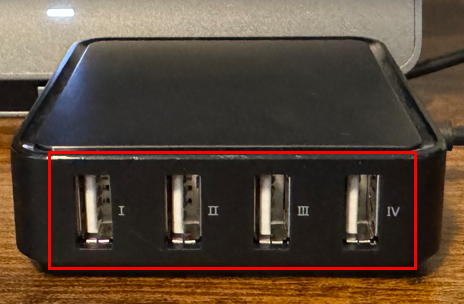

2. 📷 Example: L1400 Hub Connection

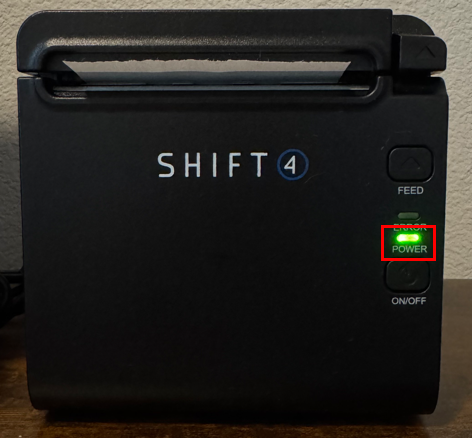

3. Power On the Printer

   • Turn on the printer using the power button on the front.

   • A green power light will illuminate once the printer is powered on.

4. ⚠️ If the printer doesn’t power on immediately:

   • Press and hold the power button.

   • Double-check all cable connections to ensure they are properly seated.

Note: Once the printer is successfully connected to the workstation, you will be prompted to “Allow the printer to connect/open to SkyTab Venue App.” You should select OK or YES.

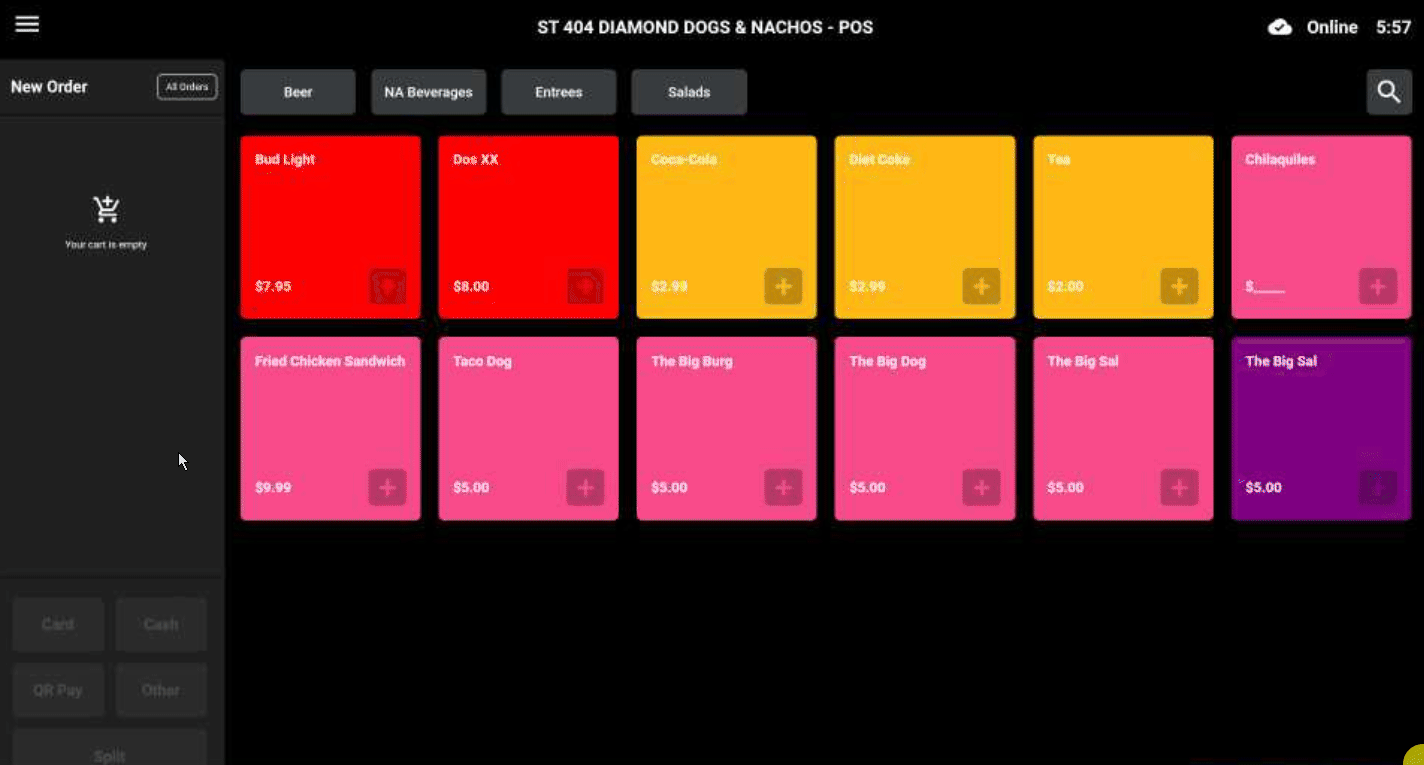

5. Select the Printer in the SkyTab Venue App

   • Open the SkyTab Venue App on your L1400 or Elo device.

   • Tap the Hamburger Menu (☰) in the top left corner.

   • Navigate to Configuration and follow the steps in the GIF below.

6. 🖥️ Note: The setup process is the same for both L1400 and Elo Kiosk devices.


   • To learn how to access the Hamburger Menu (☰ )on the Elo Kiosk, please follow the

     Elo Kiosk | SkyTab Venue Admin Panel guide.

⚙️ Optional Print Settings:

• Auto Print Receipt

  Automatically prints a paper receipt when a transaction is completed.


• Print 2 Copies

  (Only available if Auto Print is enabled) Prints two copies of the receipt upon order completion.

✅ Final Step: Run a Test

After setup, perform a test sale and ensure the receipt prints successfully. This confirms that the printer is connected and functioning properly.
